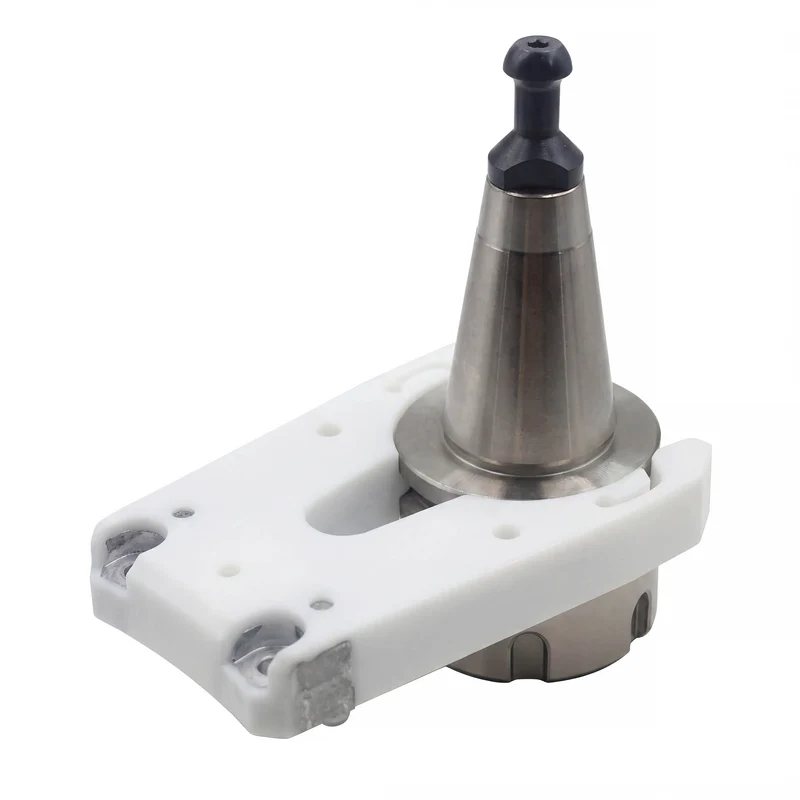

ISO30 Tool Fork for ATC

This ISO30 ATC fork is a standard for auto-tool changing spindles that use ISO30. It is a great replacement fork for a lot of machines, and it’s also what we’re using in our new Avid-style ATC Pedestal.

NOT for PDX CNC Modular ATC Pedestals

Details

• Taper: ISO30
• Material: White ABS, injection molded, aluminum inserts
• Use: ATC fork for ISO30 toolholders

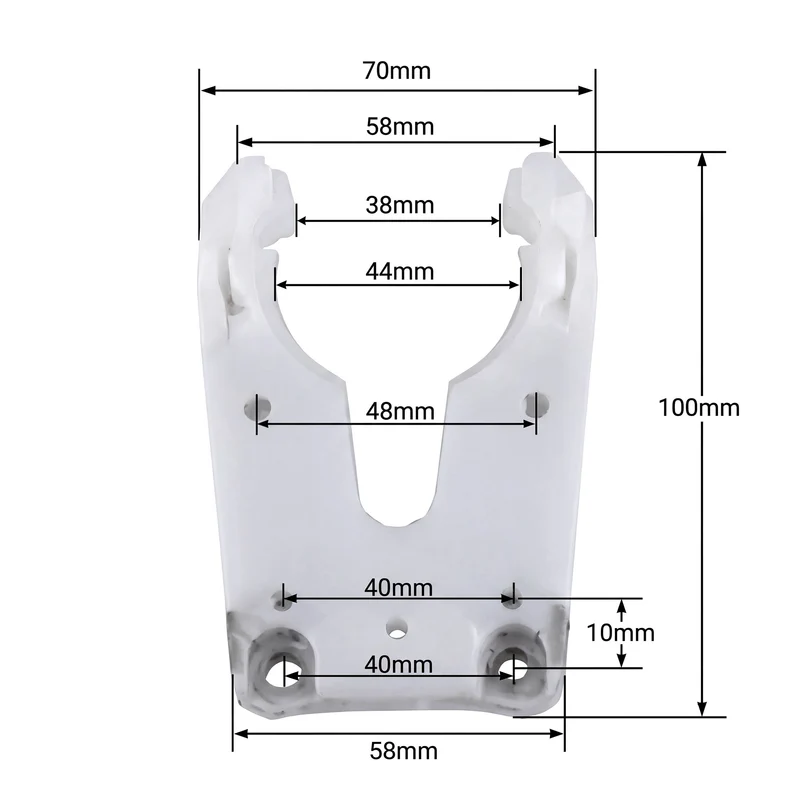

Dimensions

• Overall Width:  70mm
• Overall Length:  100mm
• Mount Hole Spacing:  58mm
• Mount Hole opening:  6.8mm
• Alignment Pin Spacing:  40mm
• Alignment Pin Diameter:  6mm
