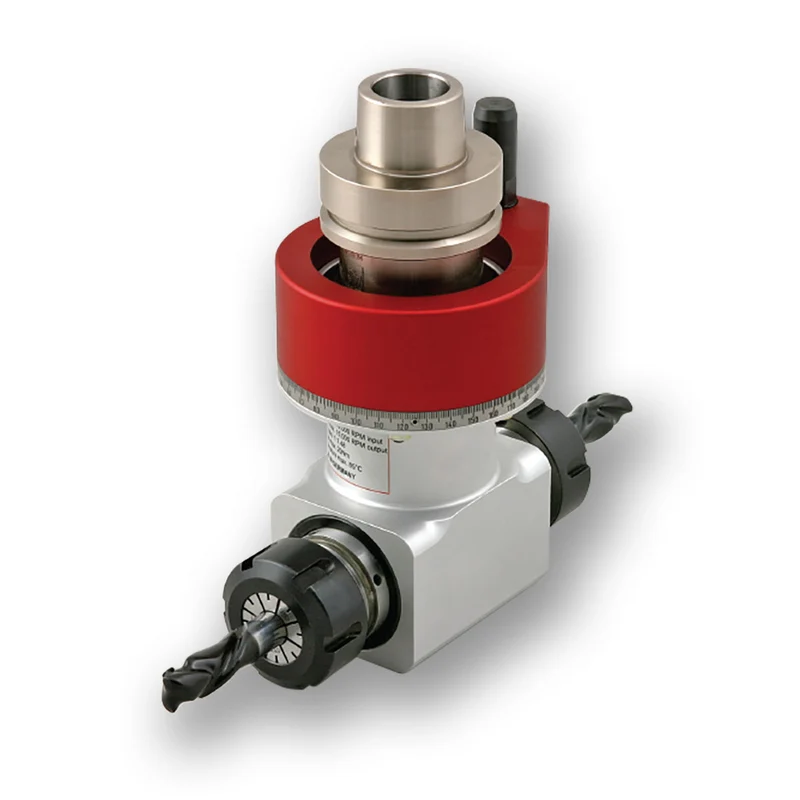

FunctionLine Duo Modular CNC Router Aggregate

Enhance your CNC router's capabilities with 4th-axis functionality at a reasonable cost. Perform operations like routing, boring, mortising, and sawing with ease. Choose between ER25, ER32, a saw arbor, or a modular output for ultimate versatility with FunctionLINE Duo aggregates.

Features: Dual, right-angle output.
Output options: ER25, ER32, saw blade, modular
Machine Connection Options:  ISO30, HSK63, and others possible.

• Max Spindle Input: 10,000 RPM
• Max Speed Output: 15,000 RPM
• Max Torque: 14.75 ft/lbs
• Gear Ratio: 1:1.5
• Lubrication: Grease
• Max Temp: 85° C / 185° F
• Rotation: 360º
• Output Direction:  #1 clockwise, #2 opposite
• Tool Interfaces: M5, R6, S1, S2, Modular
